The use of high-quality iron phosphate lithium battery, up to 2 systems in parallel, to obtain double energy storage and power output, suitable for the needs of the multi-scene home.

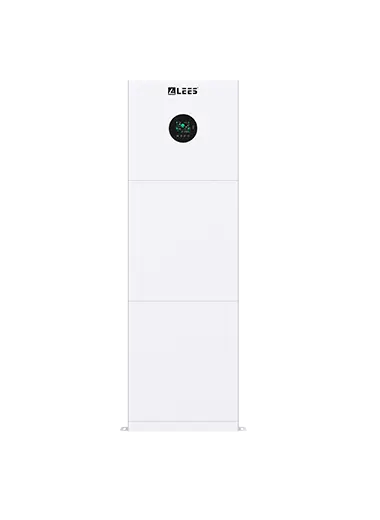

Up to 4 batteries in parallel expand to 20.48kWh
Up to 2 systems in parallel with double storage & output
Get started quickly and use it instantly
Min. width of just 13cm, saving space in the home
High-quality lithium iron phosphate cells
Proven Li-ion battery management solutions
No matching and commissioning required, ready to install
Plug-and-play, eliminate the clutter of wires
Support Wifi view real-time data through the APP
Large LCD screen with real-time data
Support Off-grid/Hybrid/On-Grid output
Multiple charge and discharge modes are available
| Inverter Module | LS-EOV05S | Can Be Set |
| Output | ||
| Rated Output Power | 5,000W | |
| Max. Peak Power | 10,000VA | |
| Load Capacity of Motor | 4HP | |
| Wave Form | Pure Sine Wave | |
| Rated Output Voltage | 220Vac(single-phase) | √ |
| Max. Parallel Capacity | 2 units(up to 10kW) | √ |
| Output Mode | Off-grid/Hybrid/On-grid | √ |
| Solar Input | ||
| Solar Charge Type | MPPT | |
| Max. Solar Array Power | 5,500W | |
| Max. Solar Open Circuit Voltage | 500Vdc | |
| Grid / Generator Input | ||
| Input Voltage Range | 90~280Vac | |
| Bypass Overload Current | 40A | |
| Battery Charging | ||
| Max. Solar Charging Current | 100A | √ |
| Max.Grid/Generator Charging Current | 60A | √ |
| General | ||
| Dimension | 500*560*130mm | |
| Battery Module | LS-EOV05B | Can Be Set |
| Battery Power | 5.12kWh | |
| Rated Voltage | 51.2V | |
| Rated Capacity | 100Ah | |
| Battery Type | LFP | |
| Cycling Lifespan | 6000(80%DOD,0.5C,25℃) | |
| Max. Parallel Capacity | 4 units(up to 20.48kWh) | √ |
| Dimension | 600*560*130mm | |
| Standard | UN38.3,MSDS,UL1973,IEC62619,IEC61000 RoHS | |
