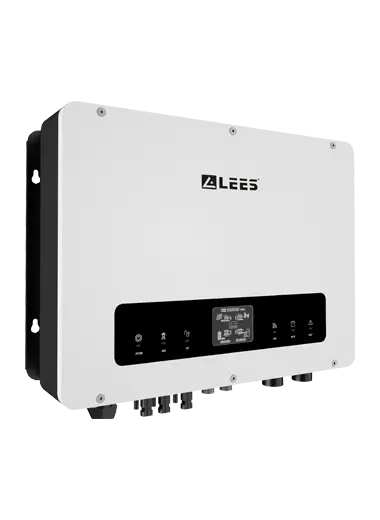

Battery input is easy to operate, supports only sound and light control, three-phase unbalanced output, IP65 outdoor protection, remote monitoring, suitable for multiple scenarios
Big LCD display
Power export limit
Three phase unbalanced output
Wifi/GPRS/Lan communication optional
Quick and easy single-person installation
Interconnects with standard household
Comply with international quality standards
Tested by TUV,BV,Dekra etc.
IP65 ingress protection
10+years R&D accumulation and support
| Model No | LS-EPH4KTL | LS-EPH5KTL | LS-EPH6KTL | LS-EPH8KTL | LS-EPH10KTL | LS-EPH12KTL |
| Input(DC) | ||||||
| Max DC power | 6000W | 7500W | 9000W | 12000W | 15000W | 15000W |
| Max DC voltage | 1000Vd.c. | |||||
| MPPT voltage range | 200...850Vd.c. | |||||
| Max input current/per string | 13Ax2 | |||||
| Number of MPP trackers | 2 | |||||
| Number of the input string | 2 | |||||
| Battery Input | ||||||
| Battery Type | Li-Lon | |||||
| Battery voltage range | 130~700V | |||||
| Maximum charge/discharge current | 25/25A | |||||
| Charge strategy for Li-tou Battery | Self-adaptation to BMS | |||||
| Output (AC) | ||||||
| AC nominal power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
| Max AC apparent power | 5000VA | 5500VA | 7000VA | 8800VA | 11000VA | 13200VA |
| Max output current | 8A | 10A | 12A | 15A | 17A | 20A |
| Nominal AC output | 50/60Hz；400/350 | |||||
| AC output range | 45/55Hz;280~490Vac(Adj) | |||||
| Power factor | 0.8leading...0.8laging | |||||
| Harmonics factor | <3% | |||||
| Grid type | 3W/N/PE | |||||
| Three-phase unbalance output | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% | 0-80% |
| AC Output（Back-up） | ||||||
| Max AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 10000VA |
| Nominal Output Voltage | 400/380V | |||||
| Nominal Output Frequency | 50/60HZ | |||||
| Output THDV (@Liuear Load) | <3% | |||||
| Efficiency | ||||||
| Maximum conversion efficiency | 98.00% | 98.00% | 98.20% | 98.20% | 98.20% | 98.20% |
| European efficiency | 97.30% | 97.30% | 97.50% | 97.50% | 97.50% | 97.50% |
| Max battery to AC Efficiency | 97.20% | 97.20% | 97.40% | 97.40% | 97.40% | 97.40% |
| MPPT efficiency | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% |
| Safety and Protection | ||||||
| DC reverse-polarity protection | yes | |||||
| DC breaker | yes | |||||
| DC/AC SPD | yes | |||||
| Leakage current protection | yes | |||||
| Insulation Impedance Detection | yes | |||||
| Residual Current Protection | yes | |||||
| Output short circuit protection | yes | |||||
| Battery reverse connection protection | yes | |||||
| General Parameters | ||||||
| Dimension (W/H/D) | 548*444*184mm | |||||
| Weight | 27 kg | |||||
| Operating temperature range ºC | -25°C...+60℃ | |||||
| Degree of protection | IP65 | |||||
| Cooling concept | Natural convection | |||||
| Topology | Transformerless | |||||
| Display | LCD | |||||
| Humidity | 0-95%,no condensation | |||||
| Communication | Standard WiFi;GPRS/LAN(optional) | |||||
| Warranty | Standard 5 years; 7/10 years optional | |||||
| BMS communication | CAN/RS485 | |||||
| Meter communication | R485 | |||||
| Certificates and Approvals | ||||||
| CQC, VDE-AR-N4105,IEC61727，IEC62116，VDE0124-AR-N0124，EN50549，IEC62109，IEC62477 | ||||||
