Photovoltaic power generation can be efficiently utilized to meet the application requirements of small and medium-sized micro-grids and industrial and commercial buildings.
Modular design, easy installation and maintenance, and easy expansion.
Using dual-stage topology and battery voltage input range is wide.
Support bidirectional power conversion.
Built-in transformer.
Support photovoltaic panel access with a photovoltaic maximum power tracking function.
Support the grid-connected and off-grid operation and cooperate with STS to realize automatic and seamless switching between grid-connected and off-grid states to ensure the continuity of load power supply.
Friendly man-machine operation interface, with background remote data transmission function.

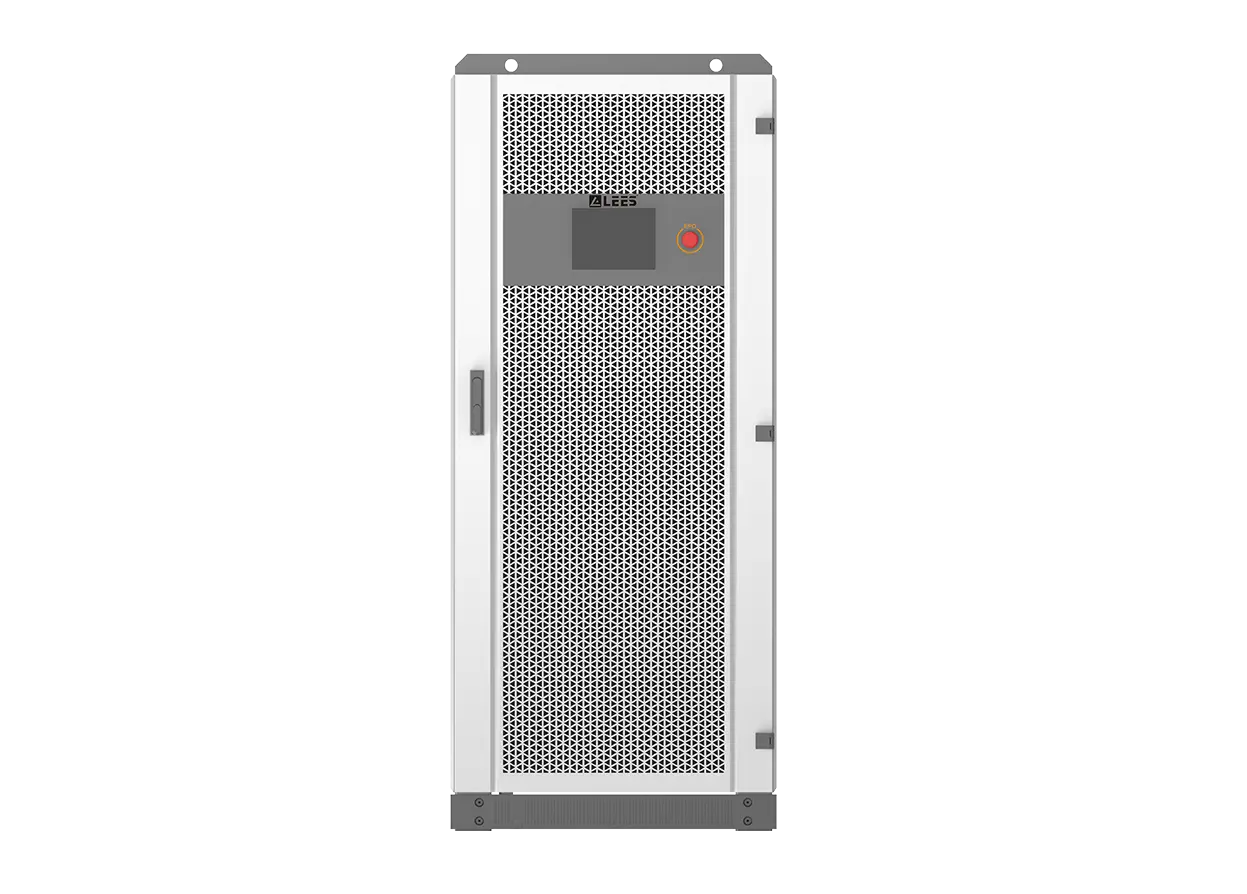

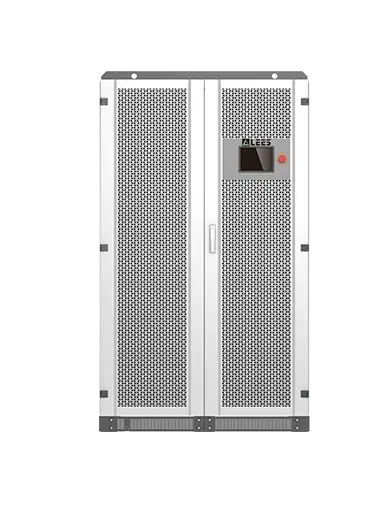

| Model | LS-PCS50-HY | LS-PCS100-HY | ||
| On-Grid Mode | ||||
| PV Input | PV voltage range | 520～900V（MPPT 520~800V） | 520～900V（MPPT 520~800V） | |
| Max. current | 192A | 384A | ||
| Max. power | 100kW | 200kW | ||
| Battery | Battery voltage range | 250～520V（Rated voltage 460V） | 250～520V（Rated voltage 460V） | |
| Max. current | 120A | 240A | ||
| Max. power | 55kW | 110kW | ||
| AC(Grid-connected) | Rated power | 50kW | 100kW | |
| Rated voltage | 400V±15% | 400V±15% | ||
| Rated frequency | 50Hz/60Hz±2.5Hz | 50Hz/60Hz±2.5Hz | ||
| Rated current | 72A | 144A | ||
| THDi | ＜3% | ＜3% | ||
| Power factor | -1~1 | -1~1 | ||
| Off-Grid Mode | ||||
| PV Input | PV voltage range | 520～900V（MPPT 520~800V） | 520～900V（MPPT 520~800V） | |
| Max. current | 192A | 384A | ||
| Max. power | 100kW | 200kW | ||
| Battery | Battery voltage range | 250～520V（Rated voltage 460V） | 250～520V（Rated voltage 460V） | |
| Max. current | 120A | 240A | ||
| Max. power | 55kW | 110kW | ||
| AC(Off-grid) | Rated voltage | 400V±10%（Adjustable） | 400V±10%（Adjustable） | |
| Rated frequency | 50Hz/60Hz | 50Hz/60Hz | ||
| Rated current | 72A（Max.79A） | 144A（Max.158A） | ||
| Rated power | 50kW | 100kW | ||
| Max. power | 55kW | 110kW | ||
| THDu | ≤3%（linear） | ≤3%（linear） | ||
| Power factor | 0.1 Lagging~1 leading | 0.1 Lagging~1 leading | ||
| Overload Capacity | 110%：10min | 110%：10min | ||
| 120%：1min | 120%：1min | |||
| General Data | Cooling | Forced-air | Forced-air | |
| Noise emission | ≤70dB | ≤70dB | ||
| Operating temperature | -20℃～50℃（＞45℃ Derating） | -20℃～50℃（＞45℃ Derating） | ||
| Ingress protection | IP20（IP54 customizable） | IP20（IP54 customizable） | ||
| Altitude | 3000m（＞2000m Derating） | 3000m（＞2000m Derating） | ||
| Relative humidity | 0～95%（non-condensing） | 0～95%（non-condensing） | ||
| Dimension (W/H/D) | 800*2200*900mm | 800*2200*900mm | ||
| Weight | 750kg | 1200kg | ||
| Others | Max. efficiency | 95.50% | 95.50% | |
| AC connection | 3W+N+PE | 3W+N+PE | ||
| Isolation mode | with isolation transformer | with isolation transformer | ||
| Protection function | under/over voltage,over-heat,Abnormal frequency,AC phase dislocation,over-current,communication malfunction,Fan Failure,Insulation impedance detection,Anti-islanding | under/over voltage,over-heat,Abnormal frequency,AC phase dislocation,over-current,communication malfunction,Fan Failure,Insulation impedance detection,Anti-islanding | ||
| Display | Touch screen | Touch screen | ||
| Communication | RS485,CAN,LAN | RS485,CAN,LAN | ||
