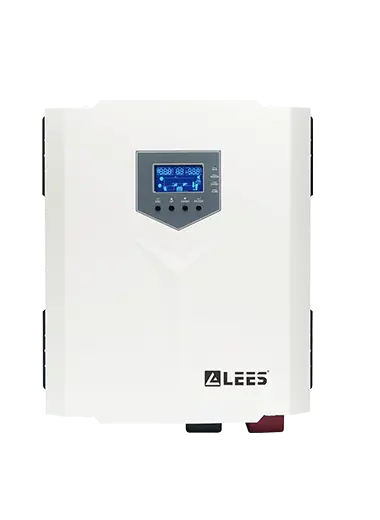

LEES low frequency inverters are power conversion devices that convert the direct current (DC) to alternating current (AC) at a lower frequency than typical inverters. They offer high efficiency, small size, and greater power density. LEES inverters are ideal for use in residential, commercial, and industrial applications.
| MODEL | LS-VT2024M | LS-VT3024M |
| Capacity(VA) | 2KVA | 3KVA |
| Voltage(DC) | 24V | |
| Nominal Voltage | 220VAC | |
| Voltage Range | 154-265VAC/185-264VAC(selectable) | |
| Frequency | 50-60HZ Auto-sensing | |
| Power Factor | 0.8 | |
| Voltage | 220VAC | |
| Frequency | 50/60HZ | |
| Waveform | Pure Sine Wave | |
| Transfer Time(AC to DC) | <8ms | |
| Transfer Time(DC to AC) | <8ms | |
| Output Voltage Regulation | ±1 0 % | |
| Bypass Mode | Yes | |
| Saver Mode | Yes | |
| Input Protection | Circuit Breaker | |
| Output Protection | Circuit Breaker | |
| Max. Efficiency | 0.88 | |
| Battery Type | VRLA/GEL/DEEP/CYCLE/lithium battery | |
| Charging Current | 10A | 15A |
| Low-Level disconnect (Selectable) | 20V-22V | |
| Maximum PV array power | 1400W | |
| MPPT control voltage range | 34V-150V | |
| MPPT Maximum PV display open circuit voltage | 150VDC | |
| Maximum solar charge current | 60A | |
| Fault | Audible alarm- continuous beeping | |
| Temperature | 0-60℃ | |
| Humidity | －10℃~90℃ Non-condensing | |
| Acoustic Noise(DB) | ＜55dB | |
| Package Size L*W*H(mm) | 530*386*200mm | |
| N.W/G.W (kg) | 13.3/14.4 | 15.6/16.7 |
